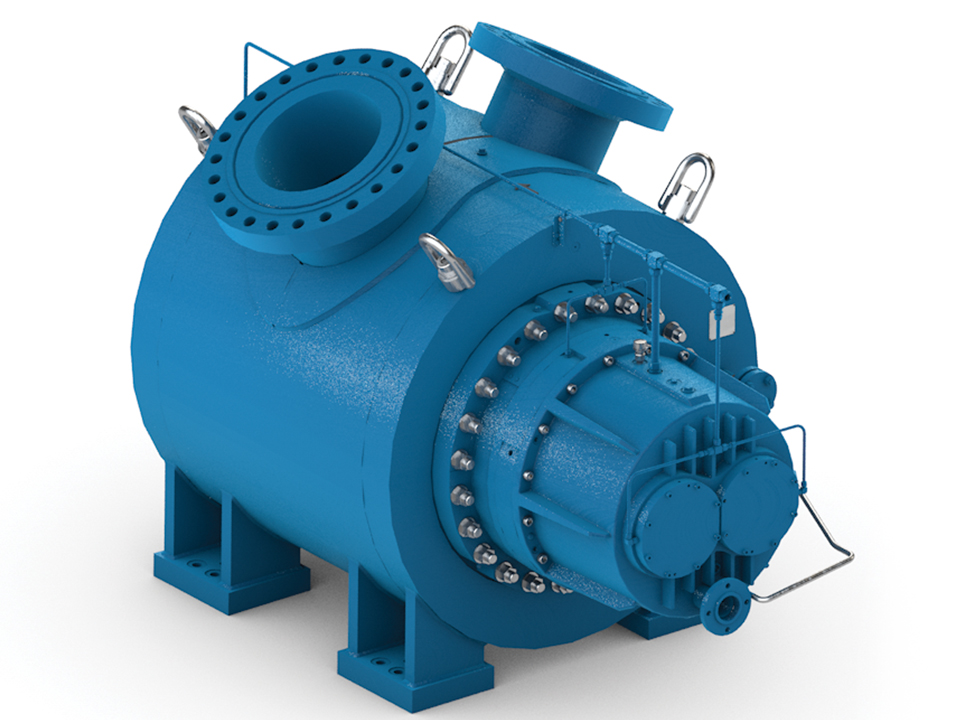

Houttuin Twin-Screw MR / MRX Series

Capable of handling a wide range of liquids, gas, pressures and temperatures, the MR Series Multiphase Pump, an API 676 3rd edition pump, excels in well pad, platform or central production facility systems. Its ability to reduce wellhead pressure, increase production and boost a full well stream mixture of oil, water and gas make it a huge asset to oil and gas operations.

Horizontal double entry twin-screw pumps for pumping multiphase fluids between 0 to 100% gas and are ideal for high capacity production and transportation applications in the Oil & Gas market. The pumps are available to meet NACE requirements and Super Duplex.

Brand:
Houttuin
Type:
2 Screw
Category
Pumps > Twin Screw
Markets
Commercial Marine
Industrial
Oil & Gas
Lubrication
Oil & Gas Transport
Product Design:
Horizontal

Other data

Design standard:
Manufacturer STD,
API 676
Fluids:
Fuel Oils,
Lubrication Oils,
Oils > Crude Oil,
Water
Sealing:
Single Mechanical seal,
Double Mechanical seal
Certification:
Class 1 div 2
Performance data
  • Suitable for handling 0-100% gas
  • Handles wide range of pressures and temperatures
  • Manufactured under rigorous standards
  • Available in less common materials like Super Duplex
  • Can meet NACE requirements

Flow rate

Max gpm:
18381.97
Max lpm:
69583.33
Max m³/hr:
4175.00

Viscosity

Max cSt [mm²/s]:
5000.00
Max SSU:
23158.82
Min cSt [mm²/s]:
0.60
Min SSU:
25.46

Max inlet pressure

Max psig:
1450.30
Max barg:
100.00

Max diff pressure

Max bar (dp):
40.00
Max psi (dp):
580.12

Min NPIPR

Min bara:
0.10

Temp

Max C°:
150.00
Max F°:
302.00
Min C°:
5.00
Min Fº:
41.00

Pressure class

Pressure class (ANSI):
125,
150,
250,
300,
600,
2500
Pressure class (metric):
PN 10,
PN 16,
PN 25,
PN 40,
PN 64,
PN 100,
PN 160

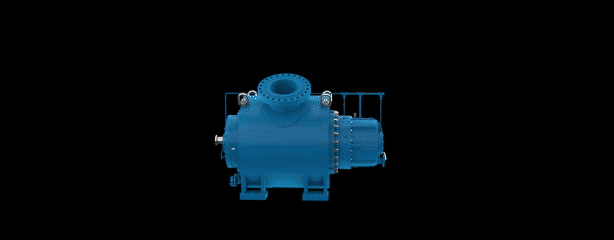

MR pump animation
