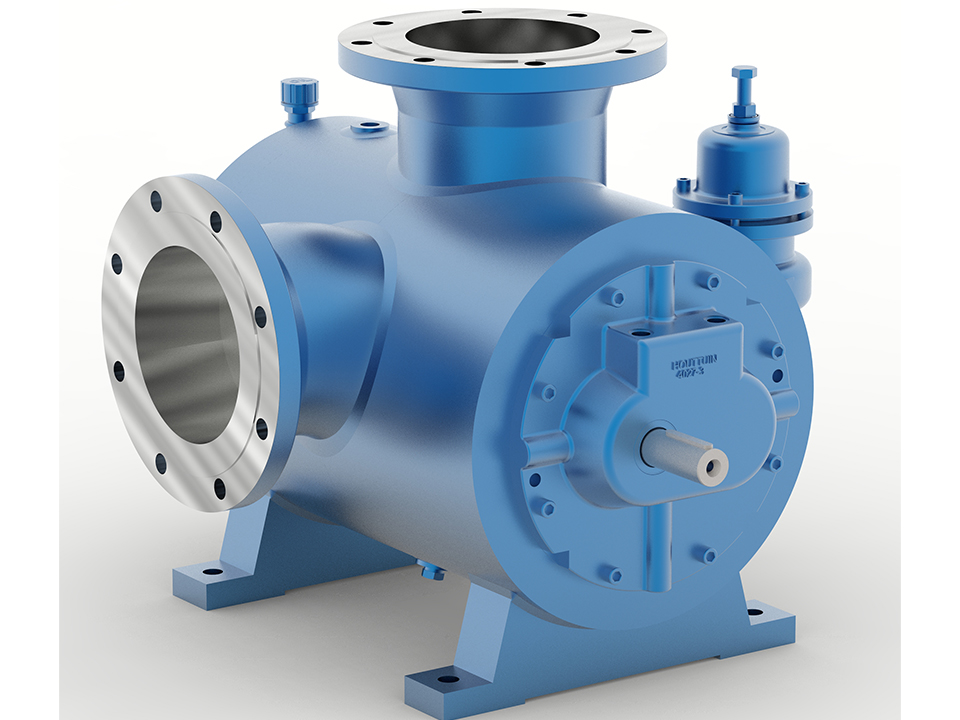

Houttuin Twin-Screw 229.10 Series

Horizontal double entry twin-screw pumps with internal bearings. For pumping lubricating oils, hydrailic oils or other lubricating fluids which do not contain abrasive substances nor chemically attack the pump materials. As lube oil pump in ship and offshore engineering, as filling pumps in tank farms and in hydraulic systems.

Brand:
Houttuin
Type:
2 Screw
Category
Pumps > Twin Screw
Markets
Commercial Marine
Industrial
Oil & Gas
Lubrication
Oil & Gas Transport
Product Design:
Horizontal
Construction features

Double-entry
Built on pressure relief value
Horizontal installation
Foot mounted design
Flanges acc. DIN or ANSI

Other data

Design standard:
Manufacturer STD
Fluids:
Fuel Oils,
Lubrication Oils
Sealing:
Single Mechanical seal
Certification:
Class 1 div 2
Performance data

Series 229.10

Capacity Q up to 1000 m³/h
Inlet pressure ps up to 6 bar
Discharge pressure pd up to 16 bar
Differential pressure pdiff up to 16 bar
Viscosity v up to 20..760 mm²/s
Fluid temperature t up to 80 °C
Speed n up to 1800 1/min

Benefits

For pumping lubricating oils, hydraulic oils and other lubricating liquids which do not contain abrasive substances or chemically attack the pump materials as lube oils, clean fuel oils, hydraulic oils

Flow rate

Max gpm:
4402.87
Max lpm:
16666.67
Max m³/hr:
1000.00

Viscosity

Max cSt [mm²/s]:
760.00
Max SSU:
3520.41
Min cSt [mm²/s]:
20.00
Min SSU:
97.82

Max inlet pressure

Max psig:
87.02
Max barg:
6.00

Max diff pressure

Max bar (dp):
16.00
Max psi (dp):
232.05

Min NPIPR

Min bara:
0.10

Temp

Max C°:
80.00
Max F°:
176.00
Min C°:
-5.00
Min Fº:
23.00

Pressure class

Pressure class (ANSI):
125,
150,
250,
300
Pressure class (metric):
PN 16,
PN 25,
PN 64
