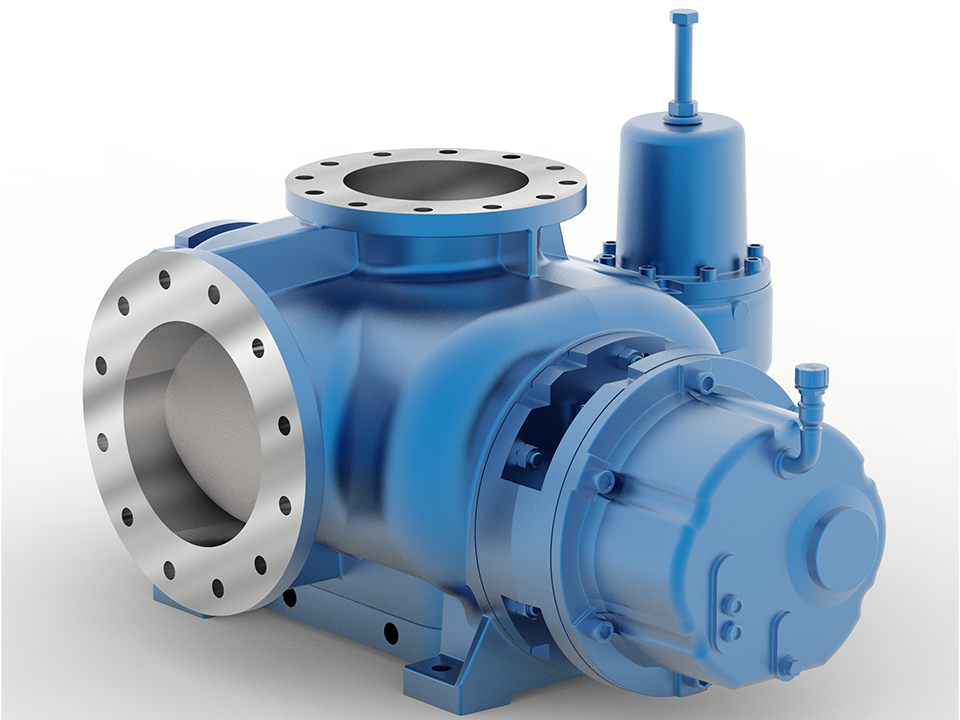

Houttuin Twin-Screw 249.40 Series

Performance data

Series 249.40

Capacity Q up to 1000 m³/h
Inlet pressure ps up to 10 bar
Discharge pressure pd up to 16 bar
Differential pressure pdiff up to 16 bar
Viscosity v up to 0,6..5000 mm²/s
Fluid temperature t up to 140 °C
Speed n up to 1800 1/min

Benefits

Water, seawater, oils, heavy fuel oils, light products

Flow rate

Max gpm:

11007.17

Max lpm:

41666.67

Max m³/hr:

2500.00

Viscosity

Max cSt [mm²/s]:

5000.00

Max SSU:

23158.82

Min cSt [mm²/s]:

0.60

Min SSU:

25.46

Max inlet pressure

Max psig:

1160.24

Max barg:

80.00

Max diff pressure

Max bar (dp):

80.00

Max psi (dp):

1160.24

Min NPIPR

Min bara:

0.10

Temp

Max C°:

400.00

Max F°:

752.00

Min C°:

-5.00

Min Fº:

23.00

Pressure class

Pressure class (ANSI):

125,

150,

250,

300,

600,

2500

Pressure class (metric):

PN 10,

PN 16,

PN 25,

PN 40,

PN 64,

PN 100,

PN 160
