IMO Three-Screw 3D Series

The 3D series pumps is a general purpose three screw pump available in 19 different displacements.
The 3D series pumps is a general purpose design suitable for many applications including lubrication, fuel transport and burner service, low pressure hydraulic applications and hydraulic elevator service. Pump shaft is generously sized to allow belt drive if desired (mechanical seal versions only).
This series is available in magnetic drive configurations.

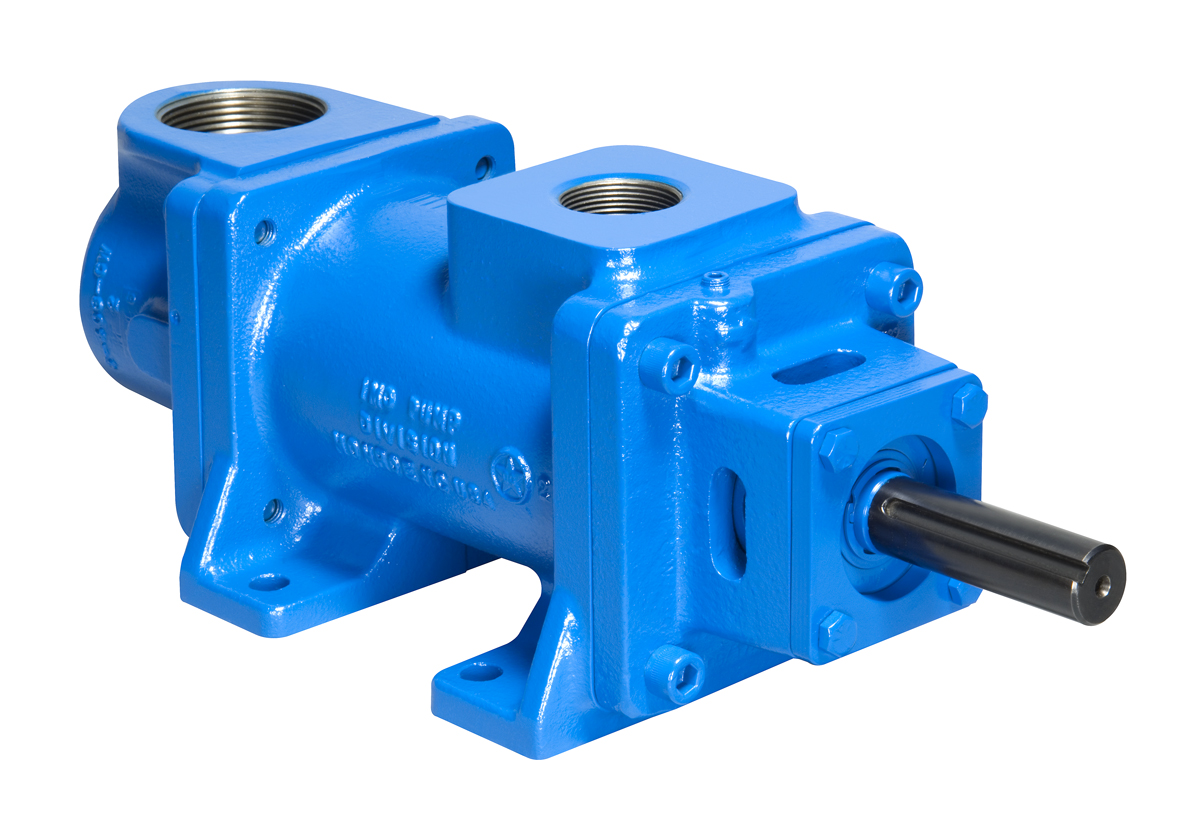

IMO 3D Series Three Screw Pump
    General Information
    Brand:
    IMO
    Category
    Pumps > Three Screw
    Markets
    Commercial Marine
    Defense
    Industrial
    Oil & Gas
    Power Generation
    Lubrication
    Industrial > Building & Construction
    Construction features

    Iron or steel case, Dry installation, Horizontal or vertical installation, Self priming, Mechanical shaft seal or sealless

    Other data

    Design standard:
    Manufacturer STD
    Fluids:
    Fuel Oils,
    Lubrication Oils,
    Oils > Crude Oil
    Sealing:
    Single Mechanical seal
    Data
    Performance data

    Capacity up to: 400gpm
    Pressure up to: 500psiD
    Viscosity range: 32 to 3500ssu
    Speed up to: 3600 rpm

    Benefits

    High Reliability & long Service life
    Lowest Total Cost of Ownership
    High Efficiency
    Lowest Maintenance Cost
    Ease of Installation & Commissioning
    Smooth Operation
    Low Noise & Vibration

    Flow rate

    Max gpm:
    400.00
    Max lpm:
    1514.16
    Max m³/hr:
    90.85

    Viscosity

    Max cSt [mm²/s]:
    3238.50
    Max SSU:
    15000.00
    Min cSt [mm²/s]:
    2.10
    Min SSU:
    33.00

    Max diff pressure

    Max bar (dp):
    34.47
    Max psi (dp):
    500.00

    Temp

    Max C°:
    121.00
    Max F°:
    250.00
    Min C°:
    -18.00
    Min Fº:
    0.00
    Files
    application/pdf, 497.7 KB Download
    application/pdf, 9.74 MB Download
