6D Series Three-Screw Pump

Series 6D IMO® pumps are intended for high pressure service on fluids with viscosity from 2cSt to 25,000ssu. Typical applications include crude oil pipeline service, fuel atomization for combustion gas turbine fuel injection, fluid power service on hydraulically operated machinery, gas sealing in centrifugal compressors and hydrostatic bearing support.

These pumps are hydraulically balanced in both the axial and radial directions, which eliminates bearing loads due to differential pressure. The single grease packed ball bearing is external to the liquid pumped and does not rely on the lubrication qualities of the pumped liquid. The single mechanical seal is exposed only to inlet pressure. Very low airborne noise levels are normal for IMO® three-screw positive displacement pumps as are high operating efficiencies and non-pulsating delivered flow.

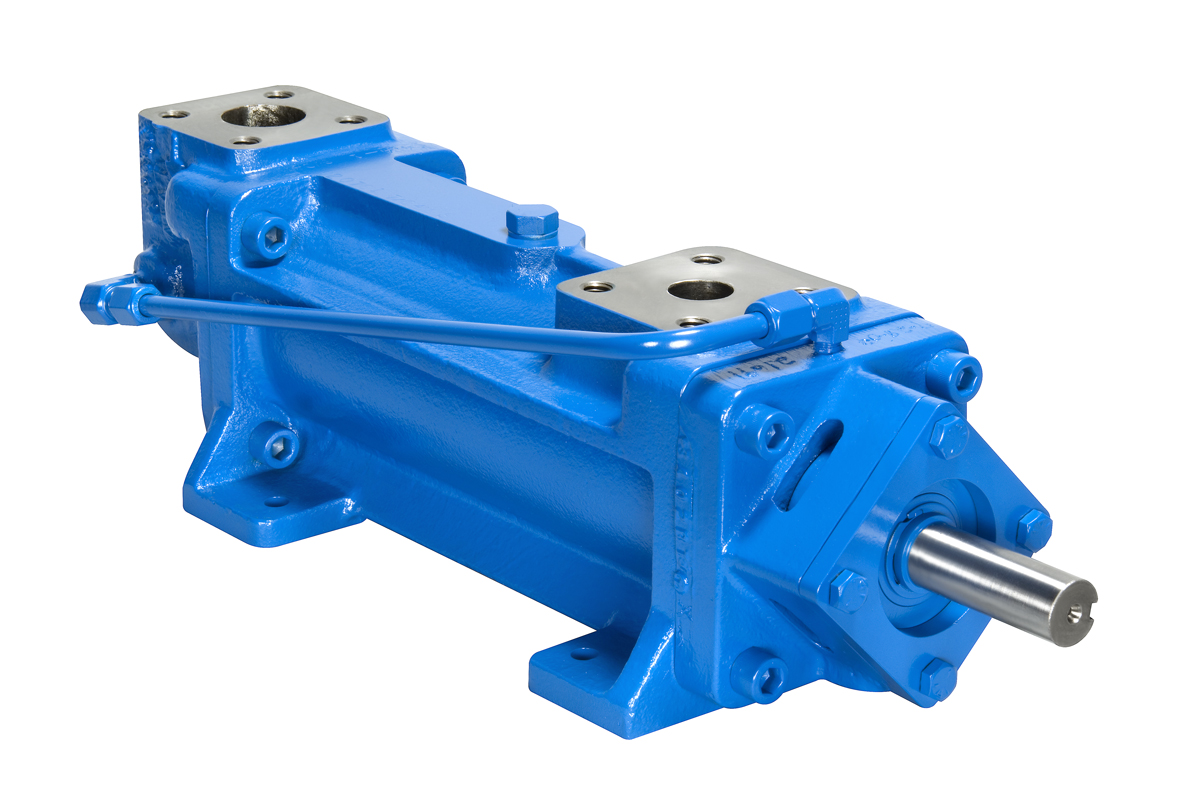

IMO 6D Series Three Screw Pump
    General Information
    Brand:
    IMO
    Category
    Pumps > Three Screw
    Markets
    Industrial
    Oil & Gas
    Power Generation
    Lubrication
    Construction features

    Iron or steel case, Dry installation, Horizontal or vertical installation, Self priming, Mechanical shaft seal

    Other data

    Design standard:
    Manufacturer STD
    Fluids:
    Fuel Oils,
    Lubrication Oils,
    Oils > Crude Oil
    Sealing:
    Single Mechanical seal
    Data
    Performance data

    Capacity up to: 400gpm
    Pressure up to: 1500psiD
    Viscosity range: 32 to 3500ssu
    Speed up to: 3600 rpm

    Benefits
    • High Reliability & long Service life
    • Lowest Total Cost of Ownership
    • High Efficiency
    • Lowest Maintenance Cost
    • Ease of Installation & Commissioning
    • Smooth Operation
    • Low Noise & Vibration

    Flow rate

    Max gpm:
    400.00
    Max lpm:
    1514.16
    Max m³/hr:
    90.85

    Viscosity

    Max cSt [mm²/s]:
    5397.50
    Max SSU:
    25000.00
    Min cSt [mm²/s]:
    2.10
    Min SSU:
    33.00

    Max diff pressure

    Max bar (dp):
    103.42
    Max psi (dp):
    1500.00

    Temp

    Max C°:
    121.00
    Max F°:
    250.00
    Min C°:
    -18.00
    Min Fº:
    0.00

    Pressure class

    Pressure class (ANSI):
    125,
    250,
    300,
    600,
    900
    Files
    application/pdf, 834.06 KB Download
    application/pdf, 9.74 MB Download
