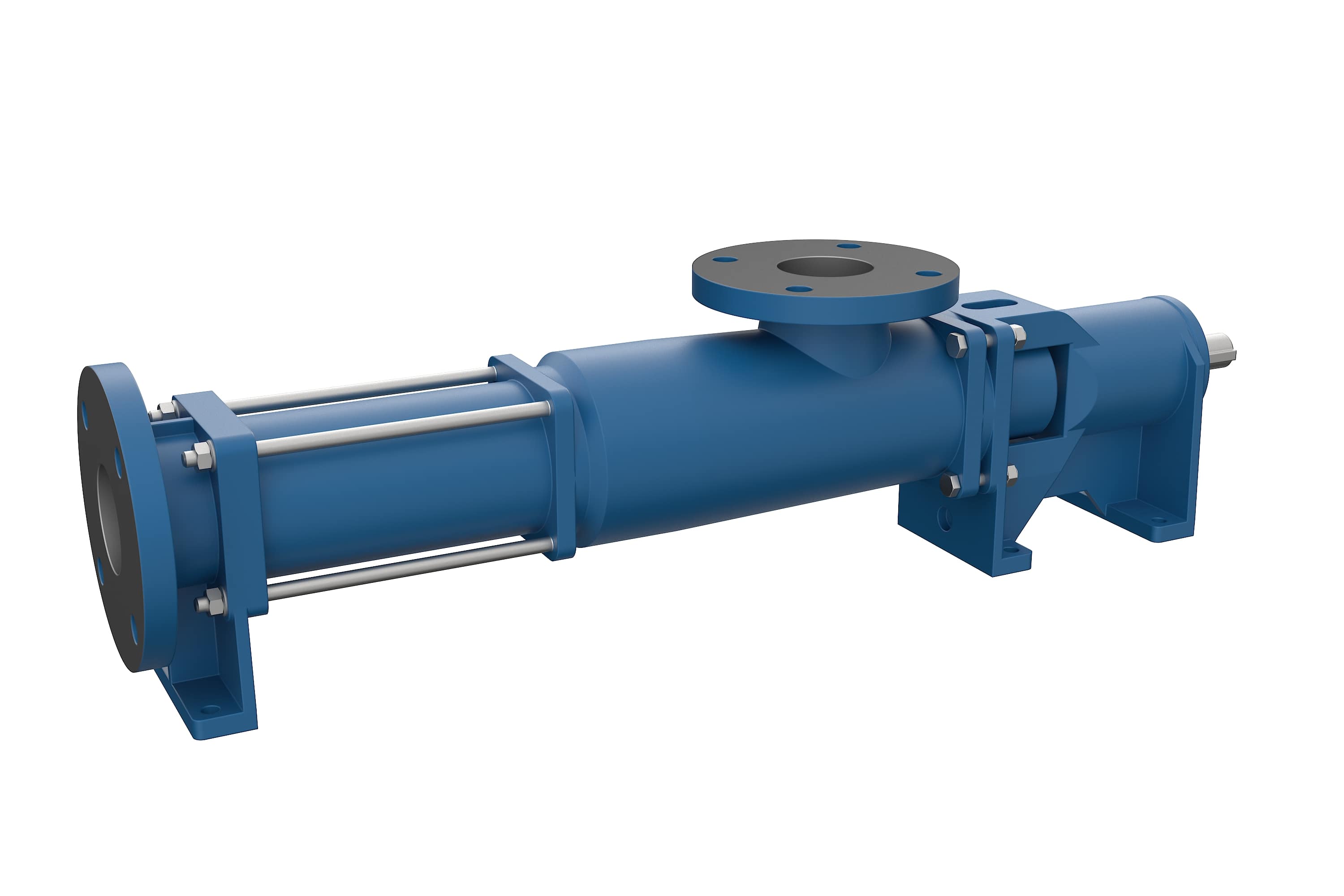

Allweiler AE.N-ID Series Progressing Cavity Pump

AE.N-ID
The AE.N is a universal Progressing Cavity Pump for pumping neutral or corrosive liquids, uncontaminated or abrasive liquids, liduis containing gases or which tend to froth and liquids of low or high viscosity including liquids containing fibrous and solid material.

Brand:
Allweiler
Category
Pumps > Progressing Cavity
Markets
Commercial Marine
Defense
Industrial
Oil & Gas
Power Generation
Industrial > Environmental Engineering
Industrial > Pulp & Paper
Paints & Colors
Industrial > Mining and Mineral Processing
Industrial > Chemical
Construction features

Base plate design (pump and motor mounted on a base plate)
Pedestal mounting
Dry installation
Horizontal installation
Bearing bracket design
Pump drive directly coupled or by gear or belt transmission
Self - priming
Reversible pumping

Other data

Solids:
60.00%
Design standard:
Machinery Directive 2006/42/EG,
API 676
Fluids:
Oils > Crude Oil,
Mixes > Bilge,
Sewage (black & grey water),
Sludge,
Flocculant,
Polymer,
Solutions > Adhesives,
Dispesions,
Paints & Lacquers,
Colour Stocks,
Solvents,
Soap Products,
Waste Oil/ Slop Oil,
Oil/ water Emulsion,
Slurries,
Bleaching Chemicals,
Paper Stock,
Glue,
Kaolin,
Dyes,
Starch,
Pigments,
Calcium Carbonate,
Titanium Dioxide (TiO2),
Latex,
Bentonite,
Caustic Soda,
Chemicals,
Sugar,
Molasses,
Preserves,
Mixes > Beverages,
Meat Products,
Fats & Oils,
Confectionary,
Chemicals
Sealing:
Packing,
Single Mechanical seal,
Double Mechanical seal,
API Cartridge Seals
Certification:
ATEX
Performance data

Series AE.N-ID

Capacity Q up to 4850 l/min
Discharge pressure pd up to 16(25) bar
Differential pressure pdiff up to 12(16) bar
Viscosity v up to 270000 mm²/s
Fluid temperature t up to 150 °C
No. Stages - up to 2 -

Benefits

Low pulsation
Self priming
Low shear & gentle fluid handling
Bi-directional flow capability (CW & CCW)

Flow rate

Max gpm:
1.00
Max lpm:
4850.00
Max m³/hr:
291.00
Min gpm:
0.80
Min lpm:
3.00
Min m³/hr:
0.20

Viscosity

Max cSt [mm²/s]:
270000.00

Max diff pressure

Max bar (dp):
12.00
Max psi (dp):
174.00

Temp

Max C°:
135.00
Max F°:
275.00
Min C°:
-10.00
Min Fº:
14.00

Pressure class

Pressure class (ANSI):
125,
150,
250
Pressure class (metric):
PN 16,
PN 25
