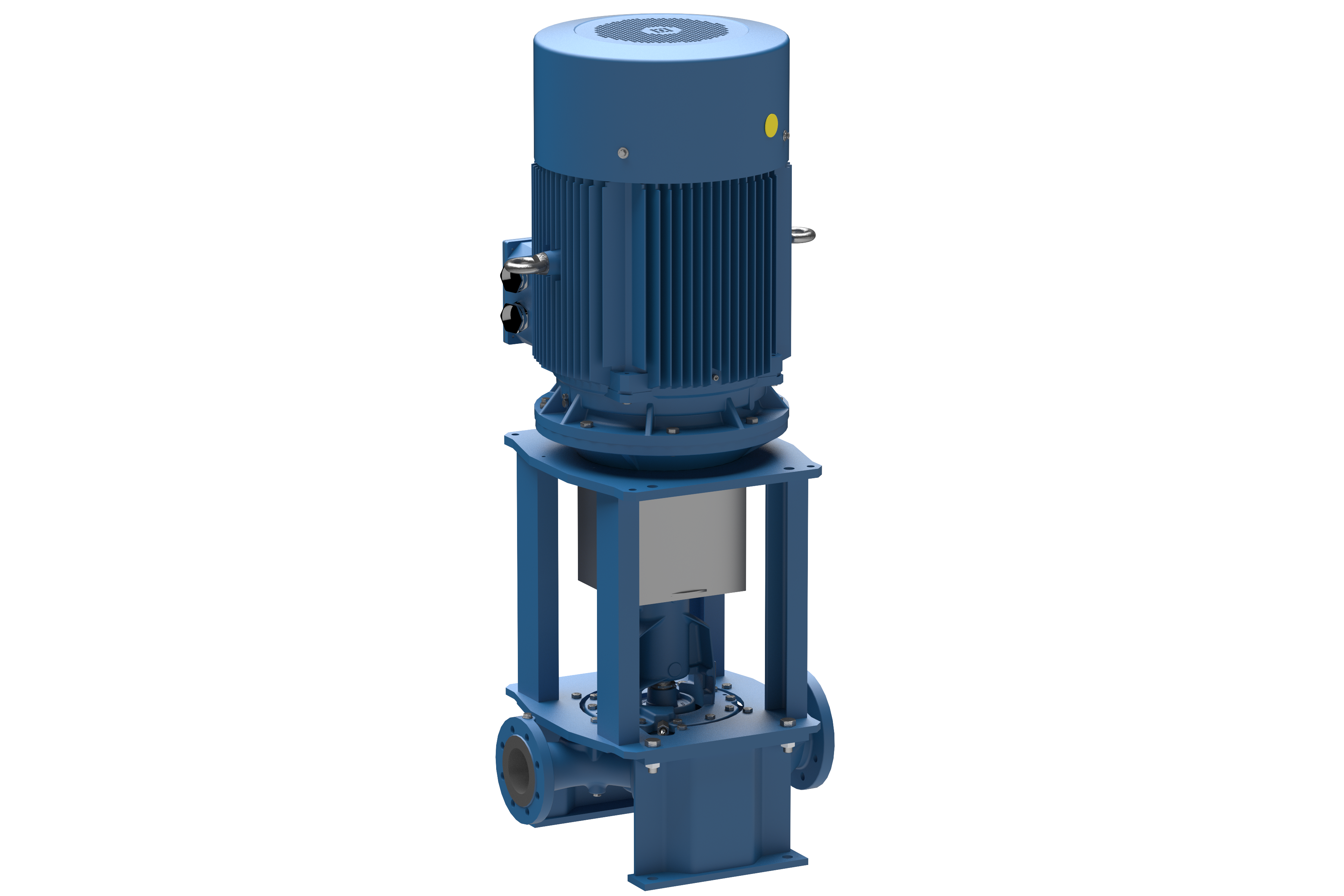

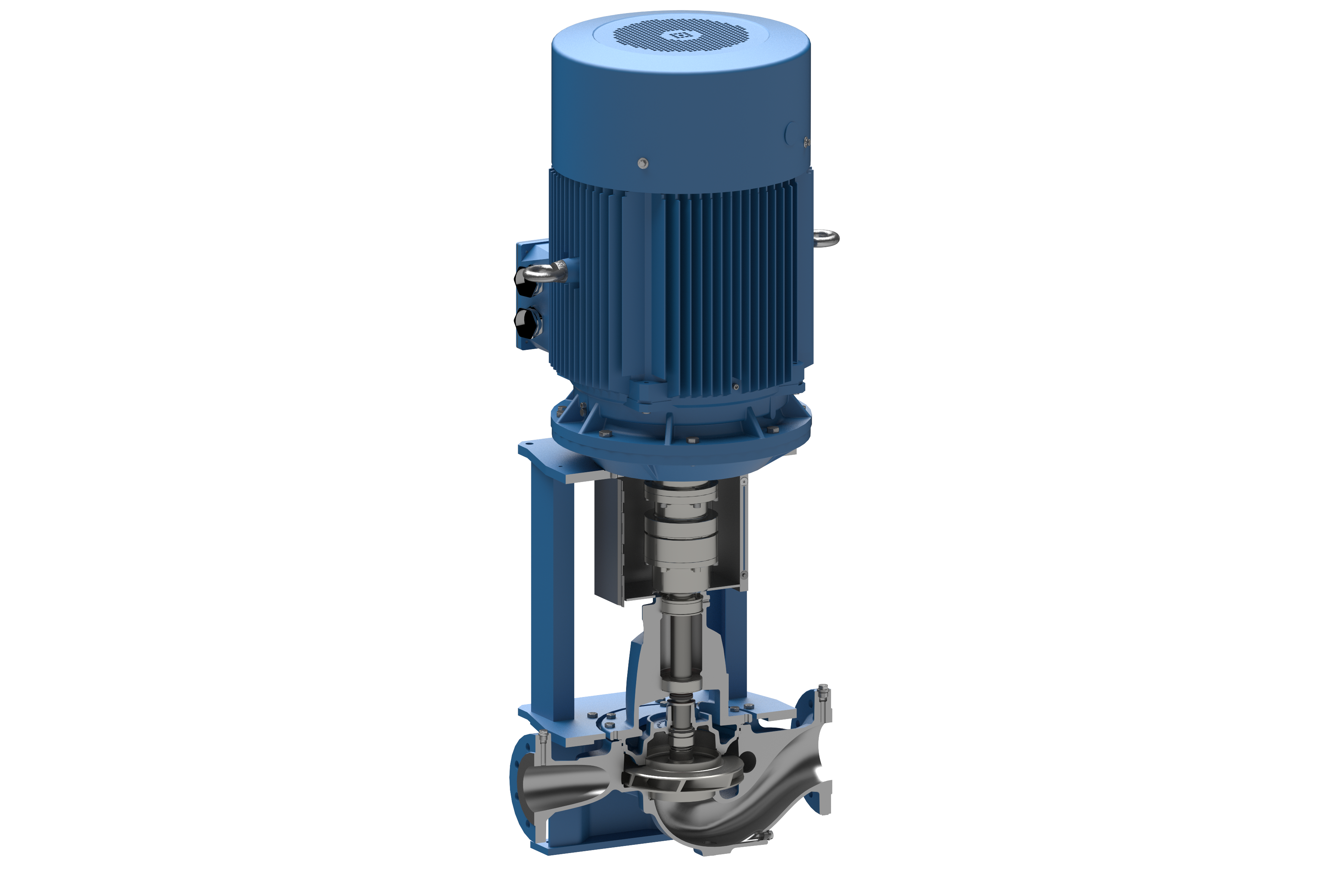

Allweiler NIM Series Centrifugal Pump
Series NIM
Centrifugal Pump in in-line design for marine applications
Centrifugal Pump based on DIN EN 733, rated pressure up to PN 10, suction and discharge branch arranged parallel across from each other, motor attached to pump via flange or lanter
General Information
Brand:
Allweiler
Category
Pumps > Centrifugal
Markets
Commercial Marine
Defense
Product Design:
Vertical
Construction features
Rated output acc. to DIN EN 733
In-line design (suction and discharge branch in-line arranged)
Bulkhead mounting
Pedestal mounting
Dry installation
Vertical installation
Bearing bracket design
Spacer coupling
Delivery head:
100.00
Other data
Sealing:
Single Mechanical seal
Certification:
ATEX
Data
Performance data
Rated output acc. to DIN EN 733
In-line design (suction and discharge branch in-line arranged)
Bulkhead mounting
Pedestal mounting
Dry installation
Vertical installation
Bearing bracket design
Spacer coupling
Flow rate
Max gpm:
10567.00
Max m³/hr:
2400.00
Max outlet pressure
Max bar (op):
10.00
Temp
Max C°:
140.00
Max F°:
284.00
Pressure class
Pressure class (metric):
PN 10
