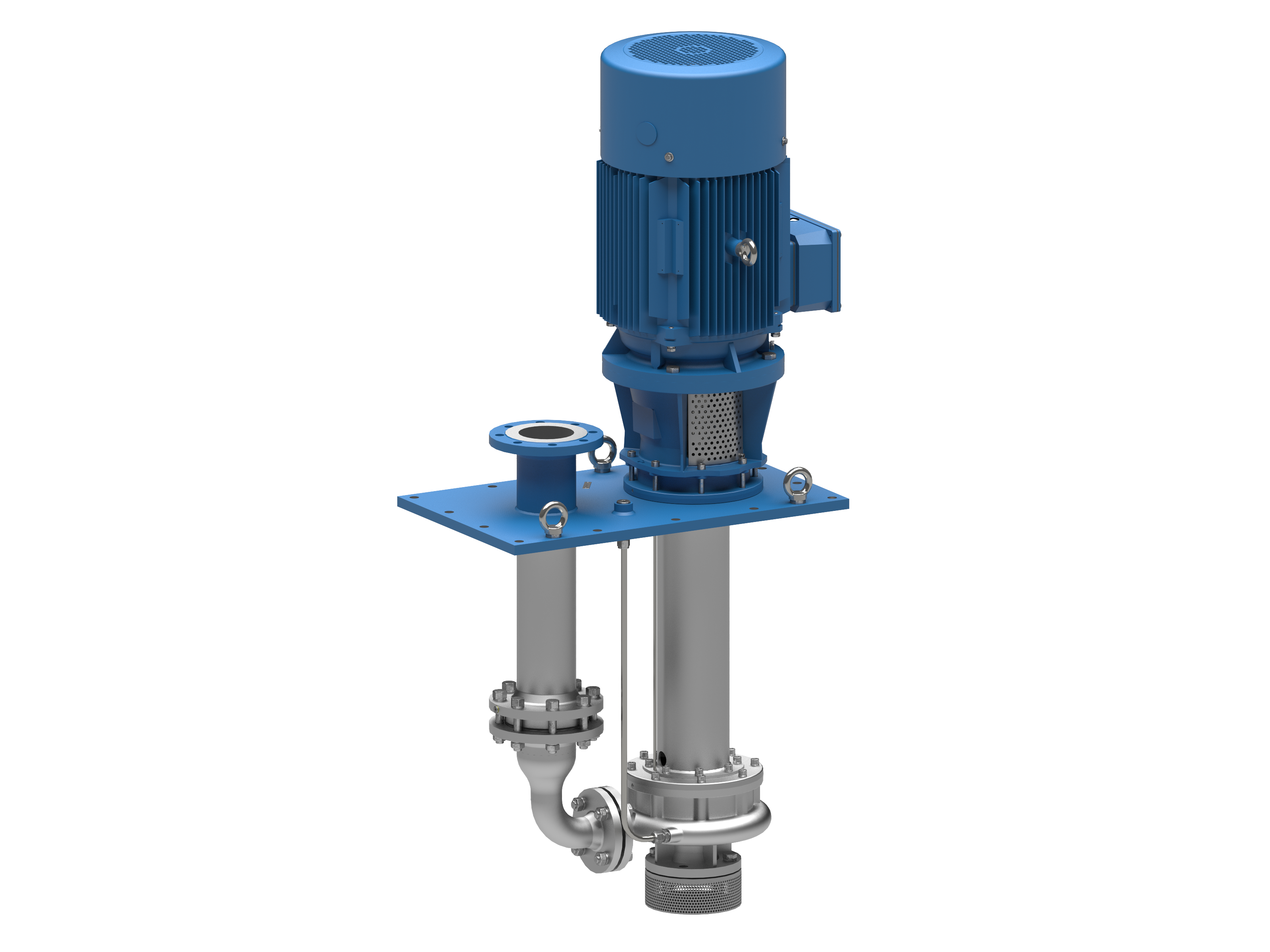

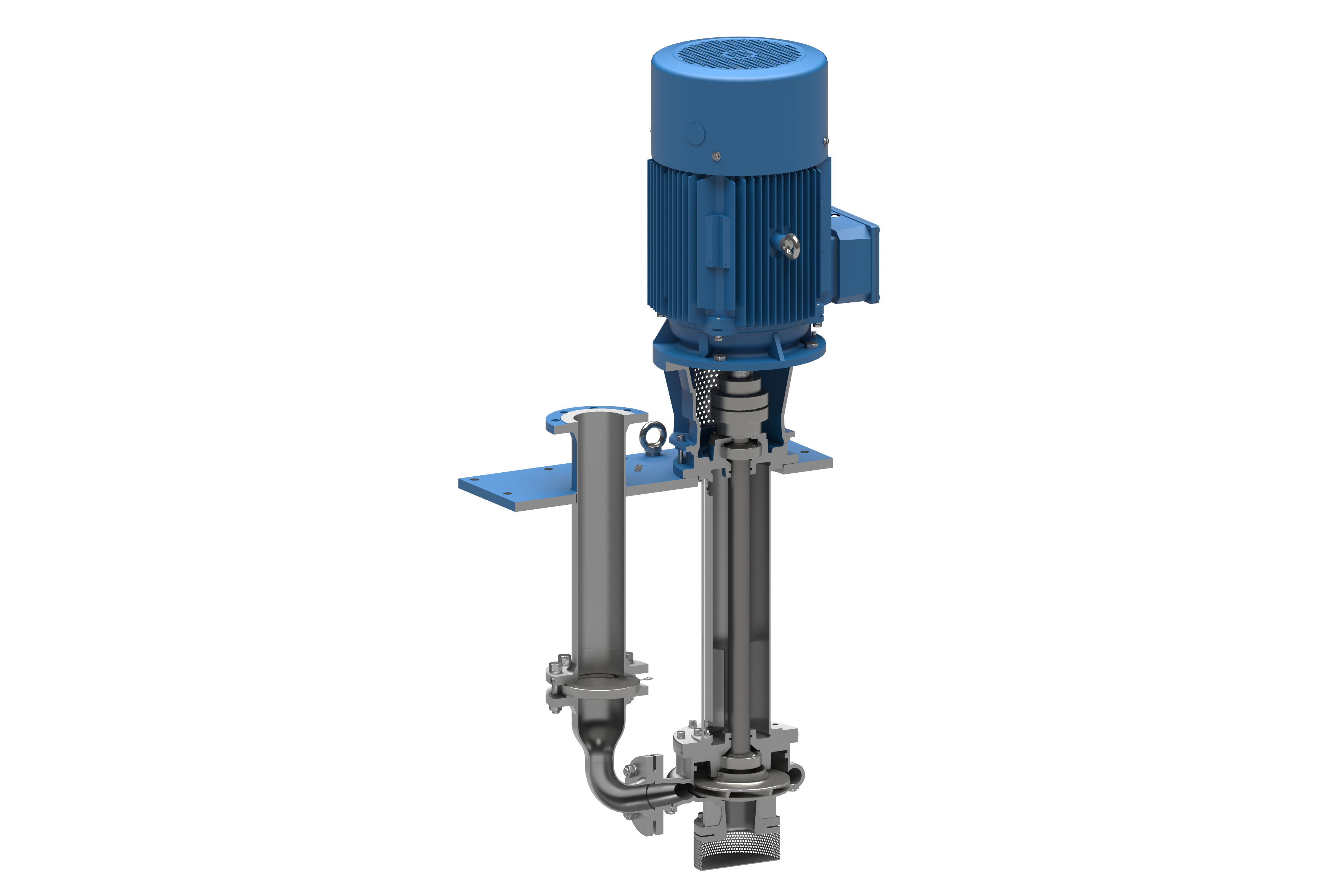

Allweiler ALLUB NSSV Series Centrifugal Pump
ALLUB NSSV
Vertically immersed Centrifugal Pump for lube oil applications
Centrifugal Pump based on DIN EN 733, rated pressure up to PN 16, immersed vertically in tank
General Information
Brand:
Allweiler
Category
Pumps > Centrifugal
Markets
Power Generation
Product Design:
Vertical
Construction features
Rated output acc. to DIN EN 733
In-tank installation
Vertical installation
Other data
Sealing:
None
Certification:
ATEX
Data
Performance data
Series ALLUB NSSV
Capacity Q up to 550 *) m³/h
Delivery head H up to 150 m
Discharge pressure pd up to 16 bar
Fluid temperature t up to 100 °C
*) Larger flow rates upon request!
Flow rate
Max gpm:
2422.00
Max m³/hr:
550.00
Max outlet pressure
Max bar (op):
16.00
Temp
Max C°:
100.00
Max F°:
212.00
Pressure class
Pressure class (metric):
PN 16
