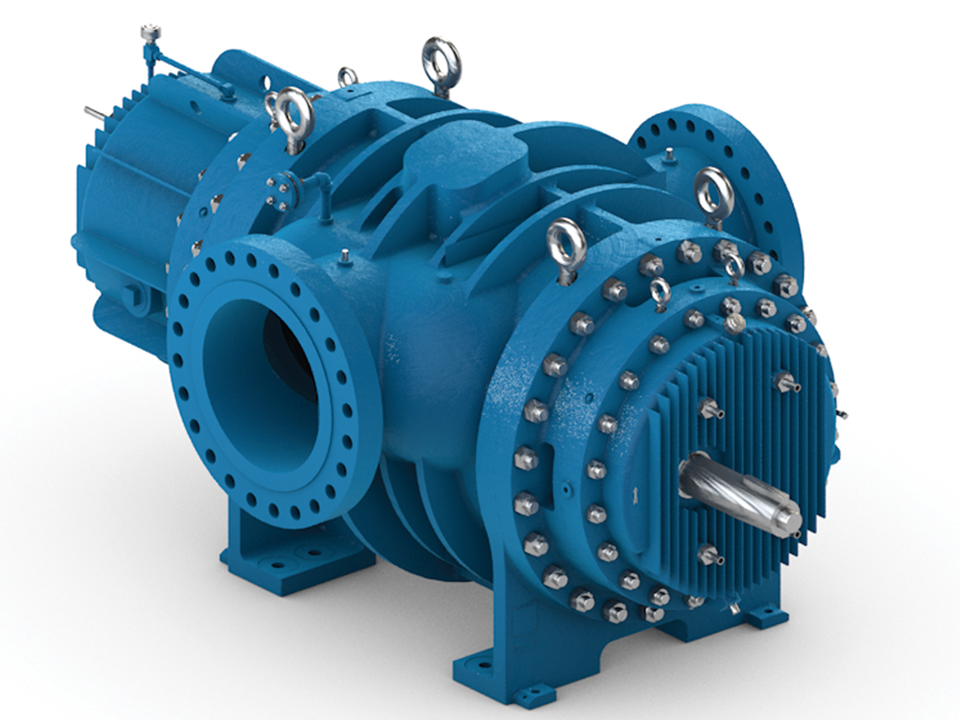

FSXB Series Twin Screw Pump

The next generation of the FSXA series, the FSXB series Twin-Screw pumps are built for high pressure applications and high compliance with API 676 3rd edition. Like the FSXA, the FSXB series excels in a wide variety of applications in the oil and gas industry.
› Field replaceable liner
› Keyless timing gears and coupling with tapered shaft for easier maintenance
› In-line suction and discharge flanges for easy installation
› Increased suction handling capabilities

The FSXB is the next generation FSXA series two screw pump suitable for high pressure applications and high compliance with API 676 3rd edition. The FSXB offers: Field replaceable liner, keyless timing gears and coupling with tapered shaft for ease of maintenance. In-line suction and discharge flanges for easy installation. Increased suction handling capabilities.

FSXB Series
    General Information
    Brand:
    Warren
    Type:
    2 Screw
    Category
    Pumps > Twin Screw
    Markets
    Industrial
    Oil & Gas
    Power Generation
    Lubrication
    Oil & Gas Transport
    Product Design:
    Horizontal

    Other data

    Design standard:
    Manufacturer STD,
    API 676
    Fluids:
    Fuel Oils,
    Lubrication Oils,
    Oil > Crude Oil,
    Water
    Sealing:
    Single Mechanical seal,
    Double Mechanical seal
    Certification:
    Class 1 div 2
    Data

    Flow rate

    Max gpm:
    8200.00
    Max lpm:
    31040.38
    Max m³/hr:
    1862.42

    Viscosity

    Max cSt [mm²/s]:
    21590.10
    Max SSU:
    100000.00
    Min cSt [mm²/s]:
    0.50
    Min SSU:
    24.00

    Max diff pressure

    Max bar (dp):
    103.42
    Max psi (dp):
    1500.00

    Temp

    Max C°:
    107.00
    Max F°:
    225.00
    Min C°:
    -29.00
    Min Fº:
    -20.00

    Pressure class

    Pressure class (ANSI):
    125,
    150,
    250,
    300,
    600
    Files
    application/pdf, 668.4 KB Download
    application/pdf, 2.53 MB Download
