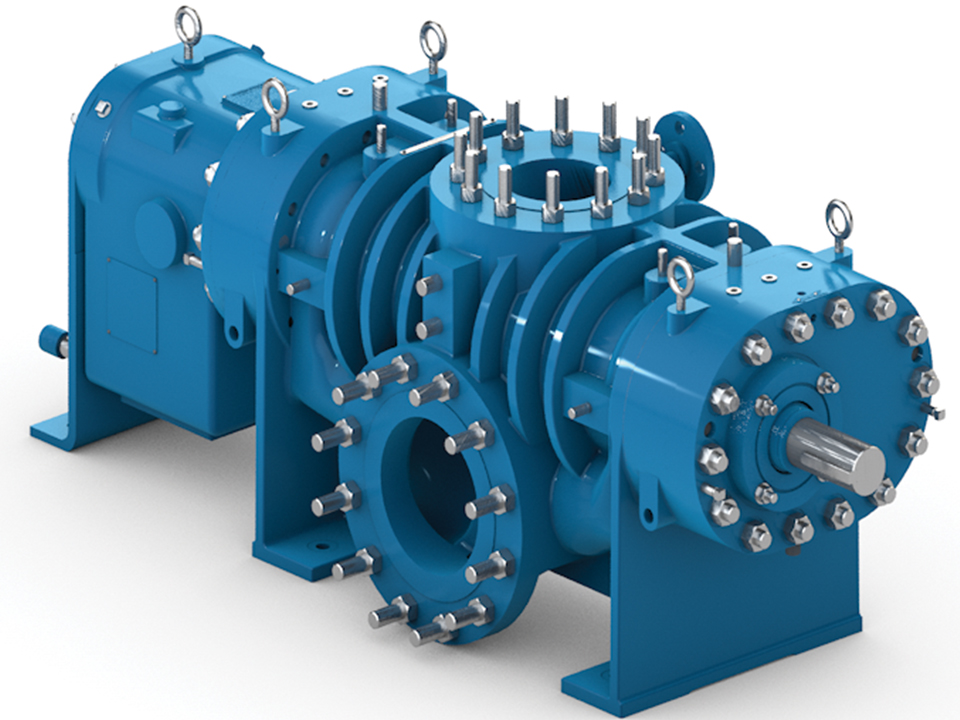

FSXA Series Twin Screw Pump

Highly efficient and built to last, these heavy-duty, high pressure Twin-Screw pumps deliver efficient performance year after year and are perfectly suited for a wide range of applications in the oil and gas industry.
› Available in a variety of materials, including cast iron and stainless steel
› Integral rotors eliminate assembly failure points
› Keyless timing gears and easy ‘pop out’ rotor access means easier maintenance
› Rugged design stands up to harshest environments
› Double helical timing gears reduce noise and vibration

The FSXA is a heavy-duty, high pressure twin screw pump suitable for applications where high efficiency and durability are critical: Integral rotors provide leading rigidity, limiting deflection and eliminating assembly failure points. Keyless timing gears and easy ‘pop-out’ rotor access for simple inspection and maintenance. Rugged design for the harshest environments

Warren FSXA Series Twin Screw Pump
    General Information
    Brand:
    Warren
    Category
    Pumps > Twin Screw
    Markets
    Industrial
    Oil & Gas
    Power Generation
    Lubrication
    Oil & Gas Transport
    Product Design:
    Horizontal

    Other data

    Design standard:
    Manufacturer STD,
    API 676
    Fluids:
    Fuel Oils,
    Lubrication Oils,
    Oil > Crude Oil,
    Water
    Sealing:
    Single Mechanical seal,
    Double Mechanical seal
    Certification:
    Class 1 div 2
    Data

    Flow rate

    Max gpm:
    8200.00
    Max lpm:
    31040.38
    Max m³/hr:
    1862.42

    Viscosity

    Max cSt [mm²/s]:
    21590.10
    Max SSU:
    100000.00
    Min cSt [mm²/s]:
    0.50
    Min SSU:
    24.00

    Max diff pressure

    Max bar (dp):
    103.42
    Max psi (dp):
    1500.00

    Temp

    Max C°:
    107.00
    Max F°:
    225.00
    Min C°:
    -29.00
    Min Fº:
    -20.00

    Pressure class

    Pressure class (ANSI):
    125,
    150,
    250,
    300,
    600
    Files
    application/pdf, 646.98 KB Download
    application/pdf, 2.53 MB Download
