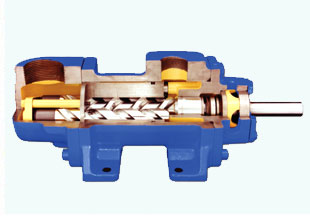

Tushaco T3ST Series Three-Screw Pump

Three Screw Pumps for applications upto 40 bar (special upto 100 bar for lube oil applications).
Single- / -double channel, self-priming; the spindles have special shapes that create sealed chambers, the contents of which are continuously moved in an axial direction from the suction side to the pressure side as the spindles rotate. Despite rotation of the spindles, no turbulence results.
The uniform chamber volumes eliminate crushing forces.

    General Information
    Brand:
    Tushaco
    Category
    Pumps > Three Screw
    Markets
    Defense
    Industrial
    Oil & Gas
    Power Generation
    Product Design:
    Horizontal,
    Vertical
    Construction features

    Replacing Liner while Casing is installed is quick and easy
    Optional direct mounting PRV as overload protection increases operational reliability
    Balance piston on Power screw reduces wear & ensure minimum loads in the actuation system by balancing out axial thrust
    Mechanical seal housing can be connected with Suction to have less pressure in housing and in turn get longer life of seal
    Hypocycloidal Profile hardened & ground Idler Screws hydraulically driven by the fluid to be pumped
    Epicycloid Profile hardened & ground Power Screw hydraulically balanced
    Substantially dimensioned Ball Bearing makes the Pump applicable in wide range of viscosities

    Other data

    Design standard:
    Machinery Directive 2006/42/EG,
    API 676
    Fluids:
    Fuel Oils,
    Lubrication Oils,
    Oils > Crude Oil,
    Thermal Oil
    Sealing:
    Packing,
    Single Mechanical seal,
    API Cartridge Seals
    Certification:
    ATEX
    Data
    Performance data

    Series T3ST

    Capacity Q up to 2835 l/min
    Differential pressure pdiff up to 40 bar
    Viscosity v up to 760 cSt
    Fluid temperature t up to 200 °C

    Benefits

    High Reliability & long Service life
    Lowest Total Cost of Ownership
    High Efficiency
    Lowest Maintenance Cost
    Ease of Installation & Commissioning
    Smooth Operation
    Low Noise & Vibration

    Flow rate

    Max lpm:
    2835.00
    Min lpm:
    30.00

    Viscosity

    Max cSt [mm²/s]:
    760.00

    Max diff pressure

    Max bar (dp):
    40.00

    Temp

    Max C°:
    200.00

    Pressure class

    Pressure class (ANSI):
    125,
    150,
    300,
    600
    Pressure class (metric):
    PN 10,
    PN 16,
    PN 25,
    PN 40
    Files
    application/pdf, 535.24 KB Download
    application/pdf, 11.06 MB Download
