Allweiler ALLCHEM CNH-B Series Centrifugal Pump

Series ALLCHEM CNH-B

Chemical Centrifugal Pump in base plate design
Centrifugal Pumps according to DIN EN ISO 2858, rated pressure up to PN 25, volute housing with axial inlet

Allweiler CNH-B Centrifugal Pump 1
    General Information
    Brand:
    Allweiler
    Category
    Pumps > Centrifugal
    Markets
    Commercial Marine
    Defense
    Industrial > Chemical
    Power Generation
    Product Design:
    Horizontal
    Construction features

    Main dimensions and rated output acc to DIN EN ISO 2858
    Technical execution acc. DIN EN ISO 5199
    Base plate design (pump and motor mounted on a base plate)
    Horizontal installation
    Bearing bracket design
    Spacer coupling (optional)
    With shaft sealing

    Other data

    Design standard:
    ISO 2858,
    ISO 5199
    Sealing:
    Single Mechanical seal,
    Double Mechanical seal
    Certification:
    ATEX
    Data
    Performance data

    Series ALLCHEM CNH-B

    Capacity Q up to 1200 m³/h
    Delivery head H up to 147 m
    Discharge pressure pd up to 16/25 bar
    Fluid temperature t up to 350 °C

    Flow rate

    Max gpm:
    5283.00
    Max m³/hr:
    1200.00

    Max outlet pressure

    Max bar (op):
    16.00

    Temp

    Max C°:
    350.00
    Max F°:
    662.00
    Min C°:
    -100.00

    Pressure class

    Pressure class (metric):
    PN 16,
    PN 25
    Images

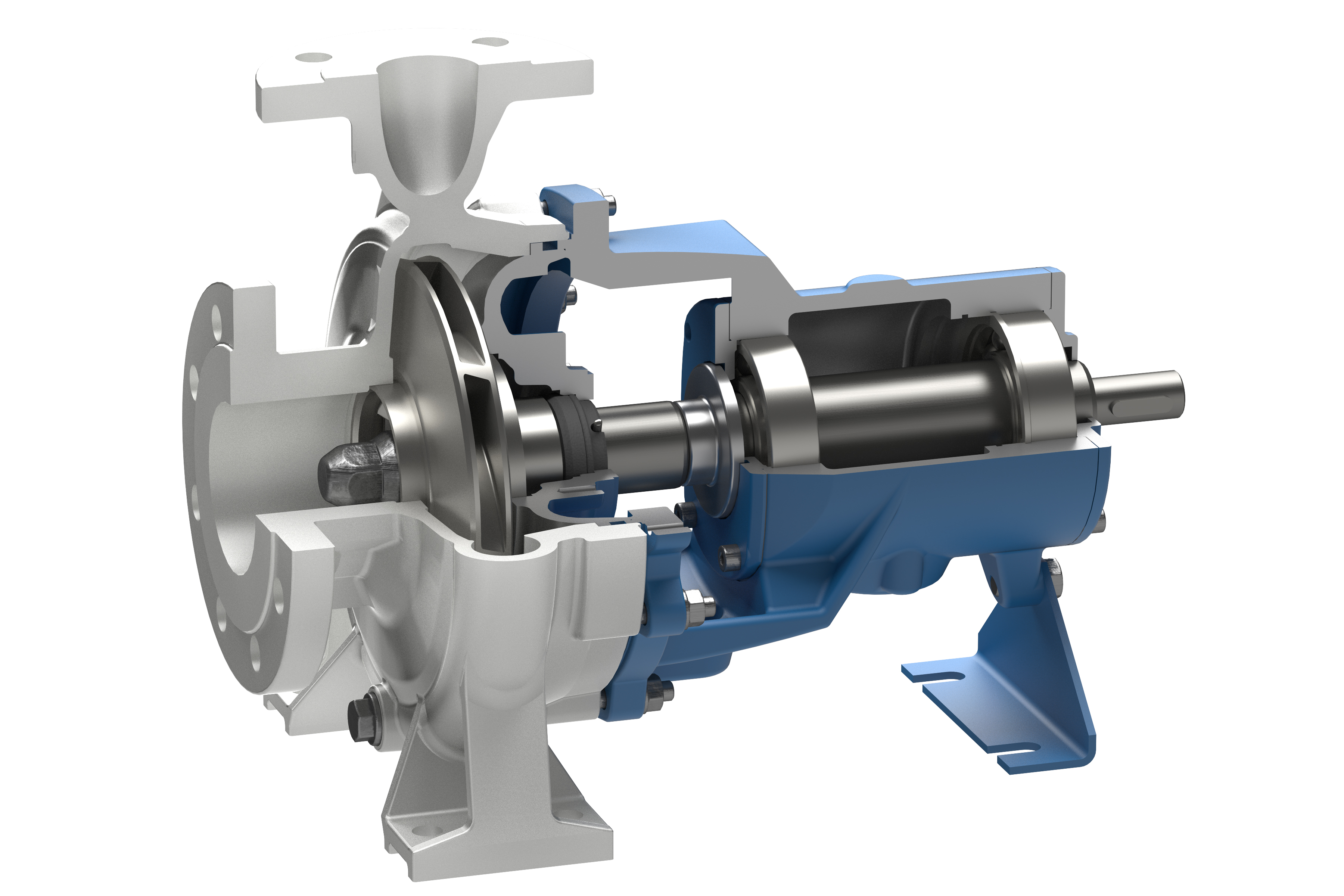

    Allweiler CNH-B Centrifugal Pump Cutaway
    Files
    application/pdf, 4.43 MB Download
