PERFORMANCE THAT FITS YOUR DEMANDS. SIZES THAT FIT YOUR PIPES.

Now available in diameters from 4 to 48 inches, KF Valves are delivering superior reliability to more systems than ever before. It's no wonder KF Valves have become the industry standard in the oil and gas production, pipeline, petrochemical and industrial markets.

Featured Content

Less welds means less worry.

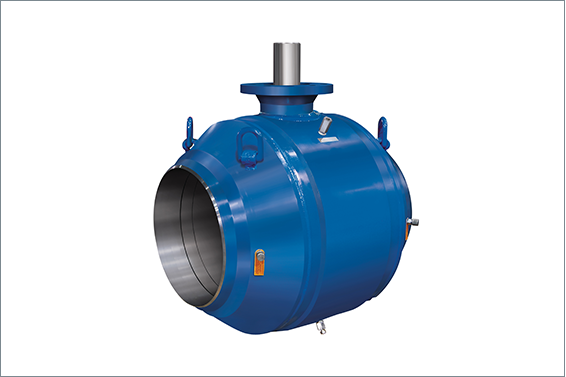

Series WB Trunnion Ball Valves

With a minimal number of welds, WB Series Ball Valves are the perfect solution for underground applications. In addition, these fully welded, trunnion-mounted, flanged and welded end ball valves offer design flexibility with an adjustable valve stem and available Double Piston Effect (DPE) down to 4 inches.

Pressure Class: CL 300-600

Materials: Low temperature carbon steel body

Temperature Range: -50° to 400° F

Sizes: 16" FP - 24" FP - CL 300 4" FP - 48" FP - CL 600

Manufacturing Standards: API 6D Fire safe designed & tested to:
API 6FA, API 607, ISO 10497 NACE MR0175/ISO 15156
ISO 5211 topworks mounting

Maintains seal no matter what.

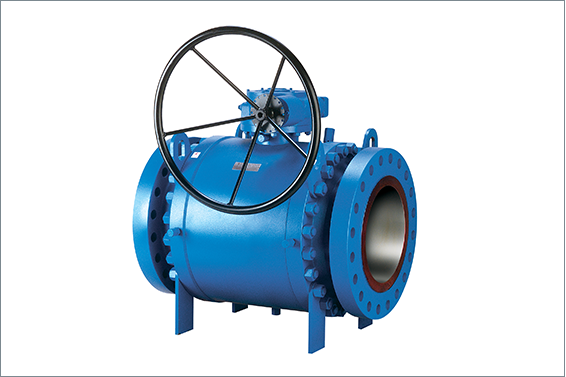

Series P3/M3 Ball Valves

These 3-piece trunnion mounted, bolted body and adapter with flanged and welded end ball valves are designed to ensure center positioning in even the highest of working pressures while also keeping a tight seal when differential pressures get low. These easy-to-maintain valves are suitable for buried or above-ground installations.

Pressure Class: CL 150 to 2500

Materials: Carbon steel, low temperature carbon steel and stainless steel body

Temperature Range: -50° to 400° F

Sizes: 2" FP - 36" FP - CL 150, 300, 600, 900, 1500, 2500

Manufacturing Standards: API 6D Fire safe designed & tested to:
API 6FA, API 607, ISO 10497 NACE MR0175/ISO 15156
ISO 5211 topworks mounting

Sturdy 2-piece construction.

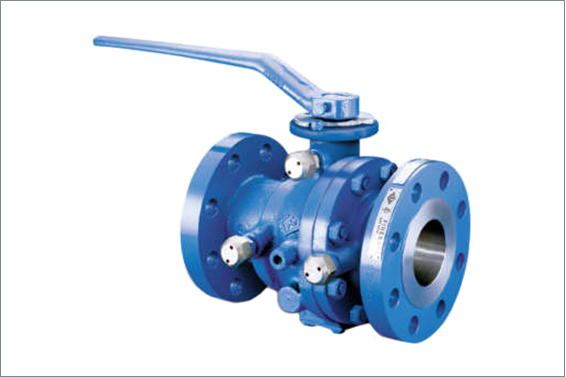

Series FAE Ball Valves

This trunnion-mounted flanged two-piece split body valve features seats that are retained in metal holders which are spring-loaded against the ball for low-pressure, firesafe sealing.

Pressure Class: CL 150 to 300

Materials: Carb steel, low temperature carbon steel and stainless steel body

Temperature Range: -50° F to 400° F

Sizes: 2" FP - 12" FP

Manufacturing Standards: API 6D firesafe designed and tested to:
API 6FA, API 607, ISO 10497, NACE MR0175/ISO 15156
